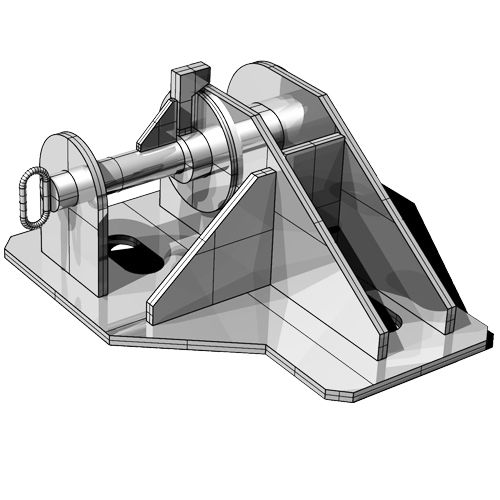

Principales dimensions des supports de remorquage Smit que nous fabriquons.
En ce qui concerne les chaînes, je vous informe comme suit :
B.P. 20 tonnes - axe 50 x 70 : convient pour chaîne à maillons ouverts dia 34 grade 2
B.P. 25 tonnes - axe 50 x 70 : convient pour chaîne à maillons ouverts ø 38 grade 2 (*)
B.P. 30 tonnes - axe dia 65 : convient pour chaîne à maillons ouverts dia 42 grade 2 - axe rond
B.P. 50 tonnes - axe dia 72 : convient pour chaîne à maillons ouverts dia 42 grade 2
B.P. 102 tonnes - axe 80 x 125 : convient pour chaîne à maillons ouverts ø 56 grade 3
B.P. 138 tonnes - axe 80 x 125 . convient pour chaîne à maillons ouverts dia 64 grade 3 (*)
B.P. 200 tonnes - axe 90 x 135 : convient pour chaîne à maillons ouverts ø 78 grade 3
B.P. 250 tonnes - axe 130 x 160 : convient pour chaîne à maillons ouverts ø 87 grade 3
B.P. 300 tonnes - axe 130 x 160 : convient pour chaîne à maillons ouverts ø 95 grade 3 (*)
B.P. 400 tonnes - axe 140 x 180 : convient pour chaîne à maillons ouverts ø 111 grade 3
B.P. 500 tonnes - axe 140 x 180 : convient pour chaîne à maillons ouverts dia 124 grade3
(*) Les chaînes ont des diamètres différents en raison des différents tire-bornes, contrairement aux goupilles, les chaînes ont des diamètres différents.
---
