Pied d'auvent pour yacht INT157

pour bateauen acier inoxydable

Extendable Boat Bimini System

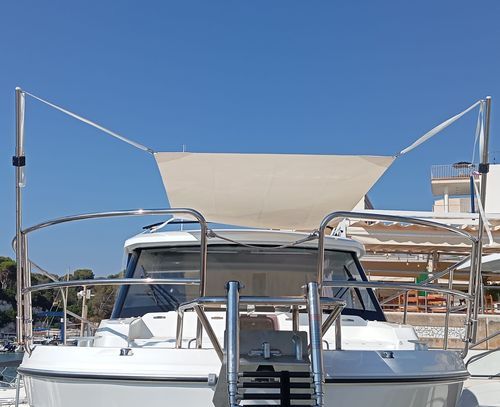

The SWI-TEC sun awning kit provides an extendable bimini solution for motorboats and sailboats, creating a shaded area in harbour or at anchor. Ideal for small, medium and sailing boats. The kit lets you extend the shaded area towards the bow or stern depending on needs.

Easy Installation in a Few Steps
Quick bimini extension without complicated installation. The system is designed for simple mounting either to existing railings or to the deck using installation sleeves.

System Benefits

• Quick bimini extension without complicated installation
• Adjustable telescopic tube with 6 positions (extends up to 190 cm)
• Compatible with boats with or without railings
• Materials resistant to water and marine conditions (stainless steel V4A / 316)
• Optional custom-made fabric in white or blue (fabric not included in the kit)
• Quiet system thanks to anti-vibration / plastic bushings

Available Models
Kit for Boats with Railings — Includes:

• 2 stainless steel telescopic tubes (110–190 cm / Ø 25 mm)
• Fabric strap and carabiner
• 2 quick-release hinges for railing installation

Article — Railing Diameter
Article | Railing Diameter
5300 | 22 mm
5301 | 25 mm
5302 | 30 mm

Kit for Boats without Railings — Includes:

• 2 stainless steel telescopic tubes (110–190 cm / Ø 25 mm)
• Fabric strap and carabiner
• Installation sleeves (vertical or angled)

Article — Installation Type
Article | Installation Type
5305 | Straight (vertical) deck socket
5310 | Angled 60° deck socket

Bimini Fabric (Optional – Custom Made)
The fabric is not included in the kit. SWI-TEC can manufacture the fabric to your specifications after the system is installed to ensure a perfect fit. Available colours/types: white or blue, reinforced rectangular type (priced per m²).

3-Step Installation

• Attach the supports or sleeves to the railing or deck.
• Insert the telescopic poles.
• Extend and secure the fabric using the included straps and carabiners.

Additional Notes

• Supports and installation sleeves include plastic bushings to prevent noise from the poles.
• Telescopic poles use anti-vibration bushings for quiet operation.

caractéristiques / spécifications techniques

• Material: Stainless steel V4A (316)
• Telescopic tube length: 110 – 190 cm (6 locking positions)
• Telescopic tube diameter: Ø 25 mm
• Number of telescopic tubes in kit: 2
• Weight (kit): 2,9 kg
• Diameter / installation options: Deck socket inclined, Deck socket vertical, for 22 mm rail tubes, for 25 mm rail tubes, for 30 mm rail tubes
• Optional fabric: sold separately — reinforced rectangular type, white or blue, priced per m²
• Quiet operation: plastic anti-vibration bushings included
• SKU: INT157
