Spot pour éclairage extérieur SMARTSPOT 50 ON-OFF

pour éclairage intérieurpour bateaudes lumières

Overview

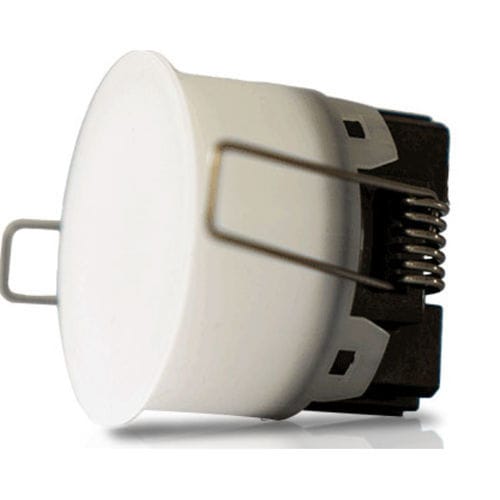

The ultimate recessed downlight generation. Embedded electronics, latest generation LED, smart.

Ghost shape
Thanks to an adaptive shape it can be installed both with an additional classic frame or totally without frames, offering the possibility of being invisible when turned off. The frame can be customized and has to be ordered separately if required.

Homogeneous light surface
The use of a technological material for the lens delivers an incredibly homogeneous enlightened surface; when the downlight is turned off it completely hides all internal components, offering an elegant, seamless appearance.

Powerful light
The light is emitted by 8 OSRAM LEDs disposed according to a luminous flux study aimed to obtain the best result. The standard white temperature is 3.000K but it can be customized upon request.

Safety and reliability
Totally plastic body eliminates the risk of galvanic currents and corrosion, making the downlight safe for marine applications and maintaining appearance over time. Electronics are automotive-qualified to resist battery voltage peaks and include an automatic shut-off system to prevent damage in case of overvoltages.

Fade and dimming
Both the turning ON and the turning OFF phases occur with a smooth fade in / fade out effect to soften the light change impact. SMARTSPOT light can be dimmed from 100% down to 0% with true deep dimming (not simple PWM), offering a very soft intensity change and a relaxing ambient light.

Compact and lightweight
Designed with a total height of just 44.4 mm, SMARTSPOT downlights can be installed where space is limited. The use of plastics in the screen and the heatsink makes the downlight very light, reducing impact on ceilings.

Ingress protection and operating environment
Rated IP68: suitable for internal rooms and external corridors; can be used in marine environments.

Certifications and compliances
Compliant with RoHS (2011/65/EU) and Electromagnetic Compatibility regulation (2014/30/EU).

Caractéristiques / Spécifications techniques

• Denomination commerciale: SMARTSPOT 50 ON-OFF
• Product code: SLMXWHI01
• Luminous intensity: 400 lm (WHITE)
• Output power: 4,8 W
• Power supply: 24 Vdc (suitable for 230 Vac with additional PSU)
• Absorption: Max 0,20 A @ 24 Vdc
• Light colour: White 3.000K (OSRAM LED) — other white temperatures available on request
• LEDs: 8 OSRAM LEDs
• Driver type: internal
• Dimmable: Yes — true deep dimming mode (0–100%)
• Fade in / Fade out effect: Yes
• Protections: polarity reverse, overheating, short circuits, electrostatic charges, voltage peaks
• Resistance to voltage peaks: up to 60 Vdc (device automatically shuts down from 32 Vdc up to 60 Vdc to prevent damage)
• Lens material: technological plastic
• Heatsink material: dissipative plastic
• Body: total plastic body — no galvanic currents / corrosion
• Waterproof: IP68
• Projector dimensions: Diameter 50 mm x thickness 44,4 mm
• System typology: Standard
• Operating modes: ON/OFF and dimming
• Compliances: RoHS 2011/65/EU; EMC 2014/30/EU
